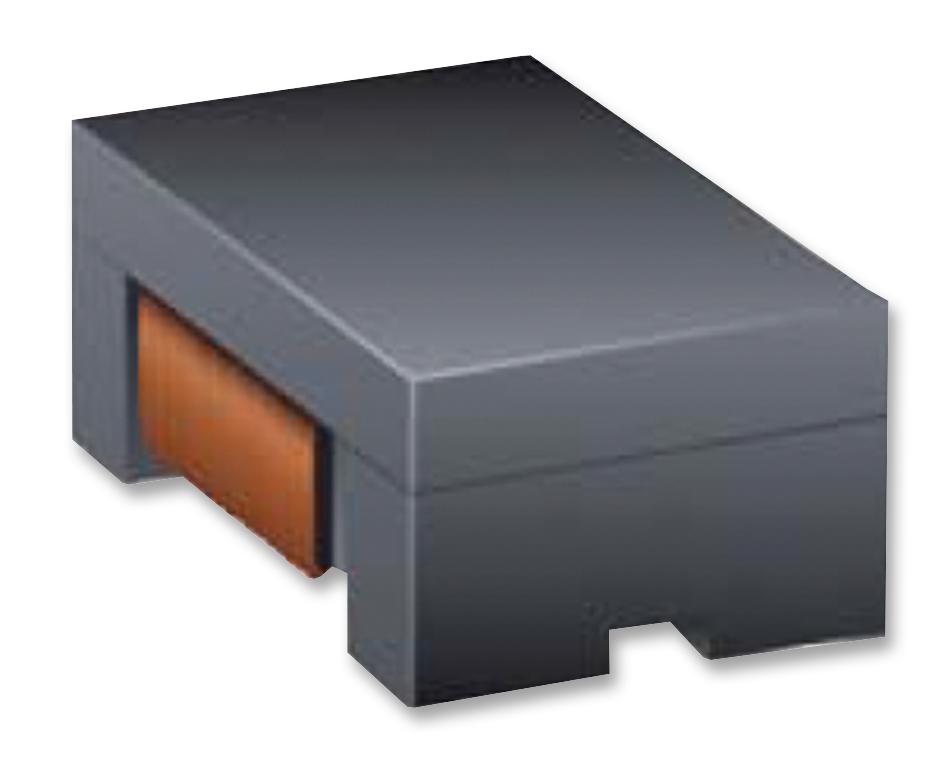

BOURNS - SRF4532-110Y - Inductor, Chip, Common Mode, 11 µH, SRF4532 Series, 700 ohm, 300 mA, 4.5mm x 3.2mm x 2.8mm
- Rated Current: 300mA
- Inductance: 11µH
- Product Range: SRF4532 Series
- Impedance: 700ohm
- Common Mode Filter Case: 4.5mm x 3.2mm x 2.8mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Core Material: Ferrite
- DC Current Max: 300mA
- DC Current Rating: 300mA
- DC Resistance Max: 0.8ohm
- Filter Terminals: SMD
- Impedance Typ: 700ohm
- Inductance Tolerance: -30% to +50%
- Insulation Resistance: 10Mohm
- Voltage Rating: 50V
- Voltage Rating V DC: 50V
