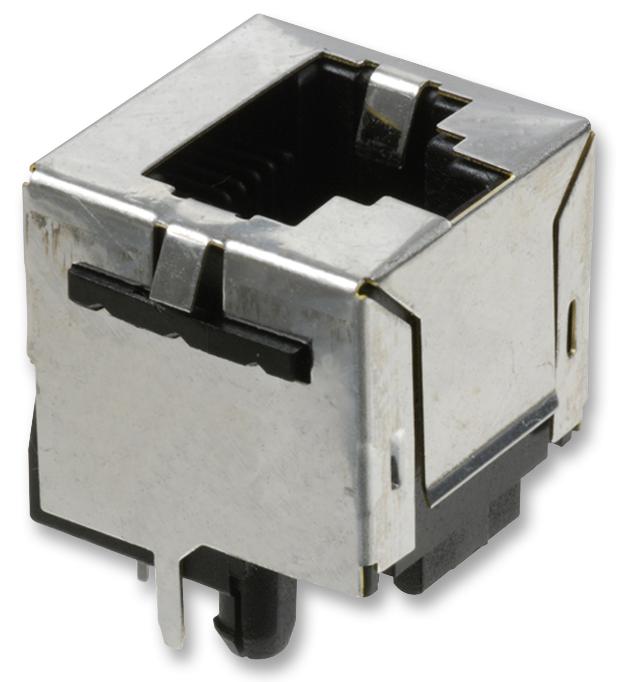

STEWART CONNECTOR - SS650810S-A-FLS - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Through Hole Mount
- Modular Connector Type: RJ45 Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: -
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Vertical
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, UL
- Body Plating: Gold
- Case Material: Brass, tin plated
- Colour: Black
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- External Depth: 15.88mm
- External Length / Height: 17.02mm
- External Width: 17.02mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Insulation Resistance: 500Mohm
- Material: Polyester
- No. of Contacts: 8Contacts
- No. of Mating Cycles: 1000
- No. of Ports: 1Ports
- No. of Positions: 10Ways
- Standard: FCC docket 20780
