Omschrijving

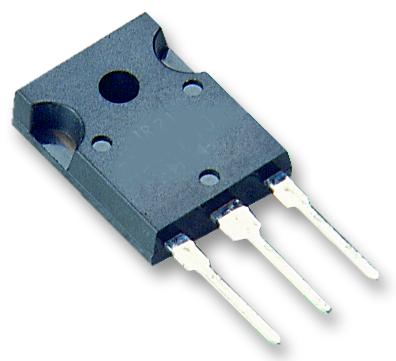

STMICROELECTRONICS - STW8NK80Z - Power MOSFET, N Channel, 800 V, 6.2 A, 1.5 ohm, TO-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 6.2A
- Drain Source Voltage Vds: 800V
- On Resistance Rds(on): 1.5ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 140W
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-249
- Current Id Max: 6.2A
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 1.5ohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 24.8A
- Voltage Vds Typ: 800V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
