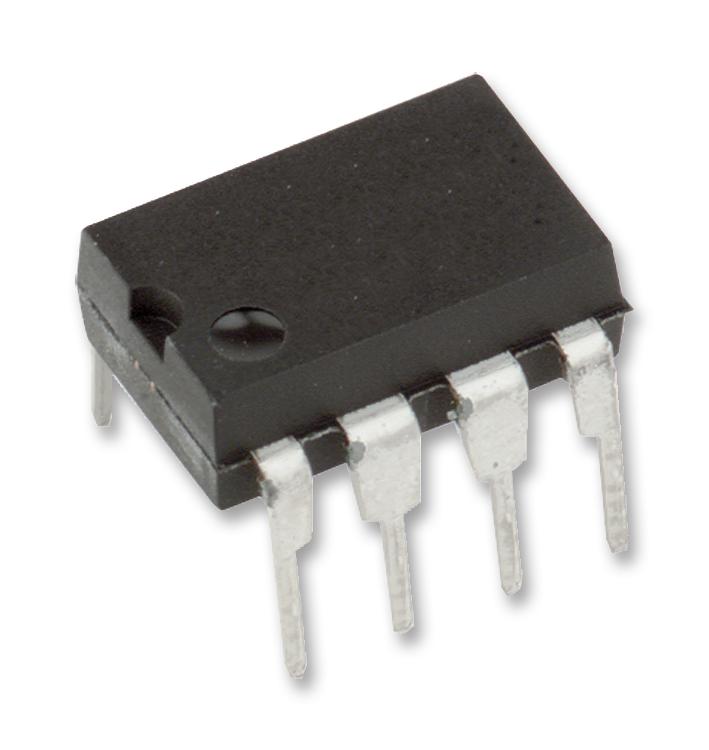

MICROCHIP - TC4420EPA - Dual MOSFET Driver IC, Low Side, 4.5V-18V Supply, 6A Out, 55ns Delay, DIP-8
- Driver Configuration: Low Side
- Peak Output Current: 6A
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 18V
- Driver Case Style: DIP
- No. of Pins: 8Pins
- Input Delay: 55ns
- Output Delay: 55ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 4420
- Device Type: MOSFET Driver
- Module Configuration: Low Side
- No. of Outputs: 2Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Resistance: 2.1ohm
- Power Dissipation Pd: 730mW
- Supply Voltage Range: 4.5V to 18V
- Termination Type: Through Hole
