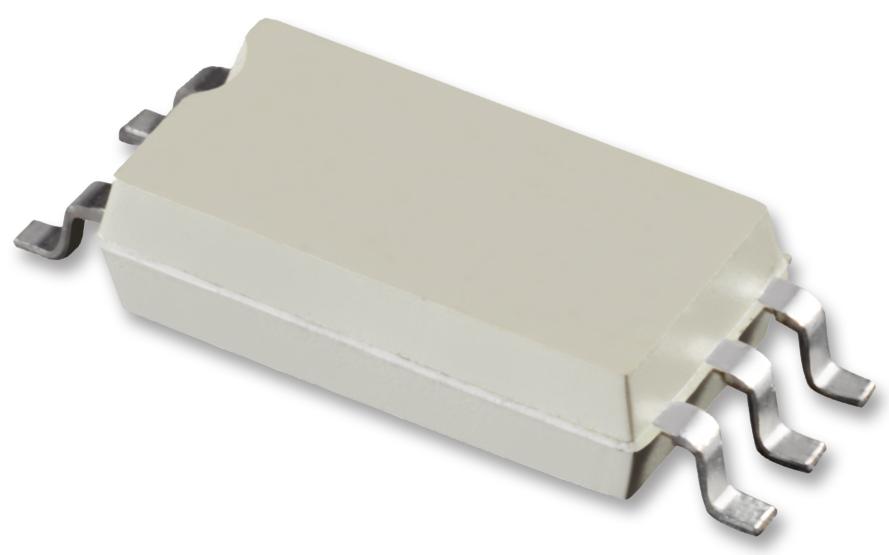

TCLT1103 Optocoupler, SMD, Transistor O/P Vishay

VISHAYSKU:TCLT1103 Bestelcode:8310785

Prijs:
Actie prijs€1,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (478 units)

Documenten en downloads

Omschrijving

VISHAY - TCLT1103 - Optocoupler, Transistor Output, 1 Channel, SOP, 5 Pins, 60 mA, 5 kV, 100 %

  • No. of Channels: 1 Channel
  • Optocoupler Case Style: SOP
  • No. of Pins: 5Pins
  • Forward Current If Max: 60mA
  • Isolation Voltage: 5kV
  • CTR Min: 100%
  • Collector Emitter Voltage V(br)ceo: 70V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: BSI, DIN, FIMKO
  • Continuous Collector Current Ic Max: 50mA
  • Current Ic Continuous a Max: 50mA
  • Current Transfer Ratio Max: 200%
  • Current Transfer Ratio Min: 100%
  • External Depth: 38mm
  • External Length / Height: 2mm
  • External Width: 7.5mm
  • Fall Time tf: 4.7µs
  • Forward Voltage VF Max: 1.6V
  • Input Current: 50mA
  • Lead Spacing: 10.2mm
  • No. of Channels: 1Channels
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 70V
  • Power Dissipation Pd: 250mW
  • Rise Time: 3µs
  • Row Pitch: 1.27mm
