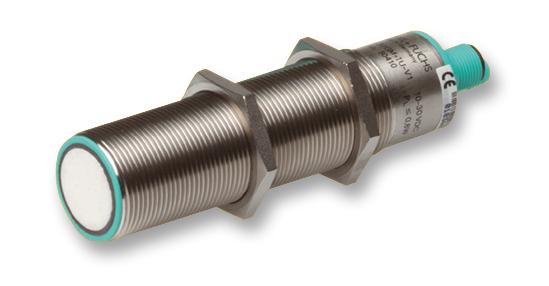

UC2000-30GM-IU-R2-V15 Sensor, Proximity PEPPERL+Fuchs

PEPPERL+FUCHSSKU:UC2000-30GM-IU-R2-V15 Bestelcode:7098030

Prijs:
Actie prijs€554,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

PEPPERL+FUCHS - UC2000-30GM-IU-R2-V15 - Ultrasonic Proximity Sensor, 2 m, Cylindrical, Stainless Steel, Analogue Output

  • Sensing Range Min: 80mm
  • Sensing Range Max: 2m
  • Beam Angle: -
  • Switching Frequency: 180kHz
  • External Diameter: -
  • Sensitivity (dB): -
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 70°C
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • External Length / Height: 113mm
  • Frequency: 180kHz
  • Operating Temperature Range: -25°C to +70°C
  • Output Current Max: 20mA
  • Output Current Min: 4mA
  • Output Voltage Max: 10V
  • Output Voltage Min: 0V
  • Response Time: 35ms
  • Sensing Distance Max: 2000mm
  • Sensing Distance Min: 80mm
  • Sensor Output: Current / Voltage
  • Supply Voltage DC Max: 30V
  • Supply Voltage DC Min: 10V
  • Supply Voltage Max: 30VDC
  • Supply Voltage Min: 10VDC
  • Thread Size: M30
