Omschrijving

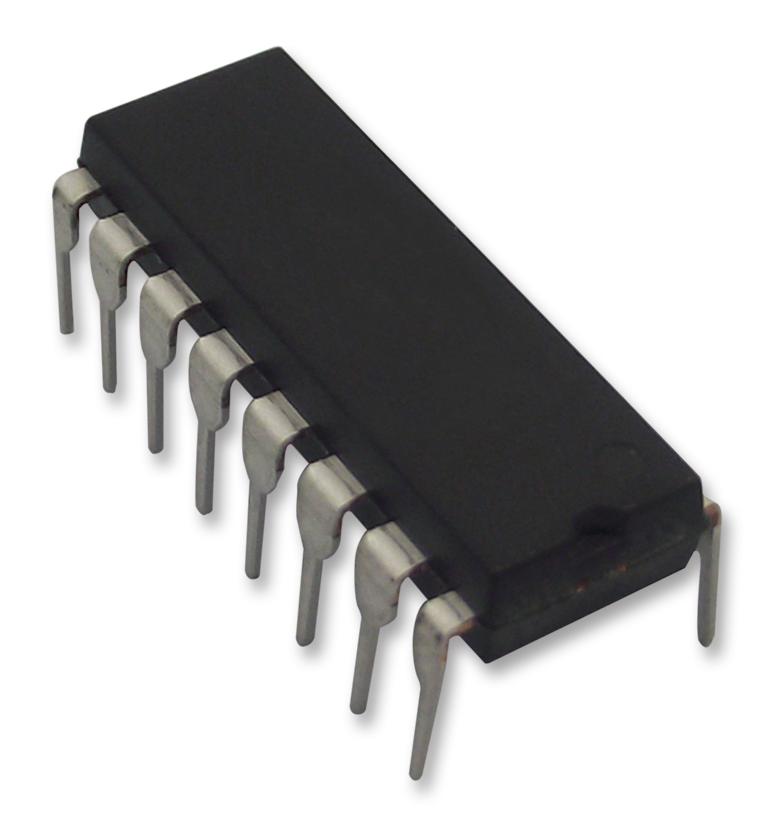

TEXAS INSTRUMENTS - UC3524AN - Regulating PWM, 40V-10V supply, 500 kHz, 60V/200mA out, DIP-16
- Input Voltage: 40V
- Output Voltage: 60V
- Output Current: 200mA
- Supply Voltage Min: 10V
- Supply Voltage Max: 40V
- Controller IC Case Style: DIP
- No. of Pins: 16Pins
- Frequency: 500kHz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 3524
- Controller Type: PWM
- IC Temperature Range: Commercial
- Logic Function Number: 3524
- Operating Temperature Range: 0°C to +70°C
- Output Current Max: 0.2A
- Power Dissipation Pd: 1W
- Power Supply IC Type: PWM controller
- Supply Voltage Range: 10V to 40V
- Termination Type: Through Hole
