Omschrijving

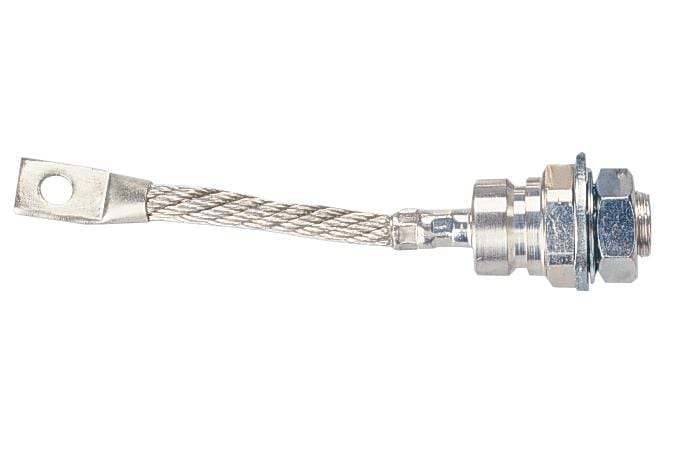

VISHAY - VS-150U80D - Diode Module, 800 V, 150 A, 1.47 V, Single, DO-8, 2 Pins
- Repetitive Reverse Voltage Vrrm Max: 800V
- Forward Current If(AV): 150A
- Forward Voltage VF Max: 1.47V
- Diode Module Configuration: Single
- Product Range: VS-15 Series
- Current Ifsm: 3.14kA
- Diode Case Style: DO-8
- Diode Configuration: Single
- Diode Polarity: Stud Cathode
- Diode Type: Standard Recovery
- Forward Surge Current Ifsm Max: 3kA
- Junction Temperature Tj Max: 180°C
- No. of Pins: 2Pins
- Operating Temperature Max: 180°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +180°C
- Thread Size: 3/8"-24UNF-2A
