Omschrijving

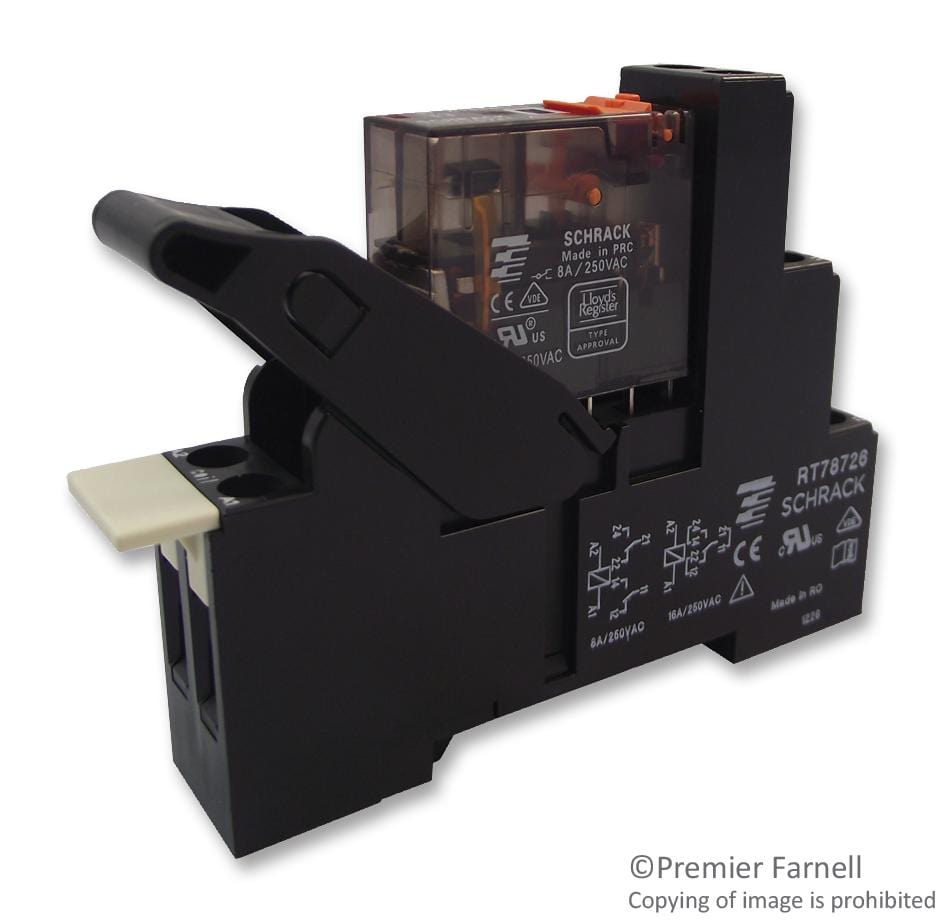

SCHRACK - TE CONNECTIVITY - 4-1415540-5 - General Purpose Relay, XT Series, Interface, Non Latching, DPDT, 24 VDC, 8 A
- Contact Configuration: DPDT
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: XT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 1.44kohm
- SVHC: No SVHC (12-Jan-2017)
- Approvals & Standards: UL, VDE
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 240V
- External Depth: 69mm
- External Height: 77mm
- External Width: 15.8mm
- Relay Type: Interface
