1-281695-0 Header, Vertical, 1ROW, 10WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :1-281695-0 Code de commande:1205989

Prix:
Prix ​​promotionnel€2,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1726 unité)

Documents et téléchargements

description

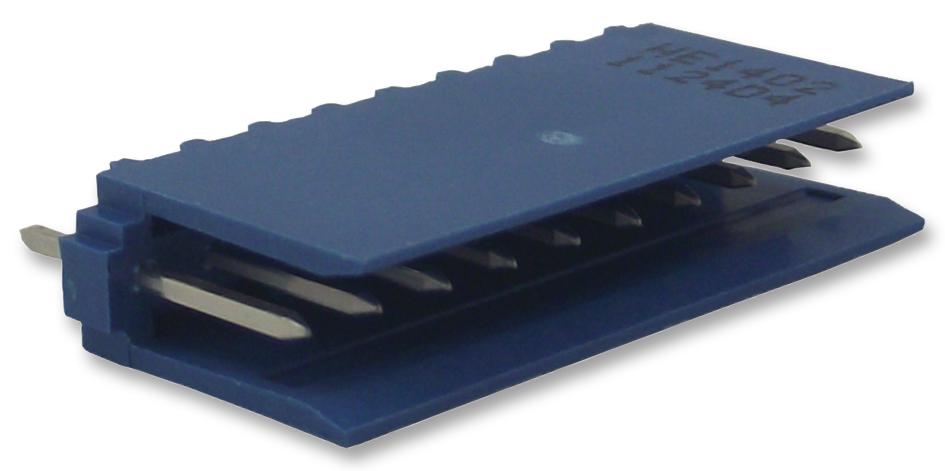

AMP - TE CONNECTIVITY - 1-281695-0 - Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 10 Contacts, Through Hole Straight

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 10Contacts
  • Gender: Header
  • Product Range: AMPMODU HE14 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: HE, NFC
  • Colour: Blue
  • Contact Resistance: 30mohm
  • Current Rating: 3A
  • De-mating Force: 3N
  • External Length / Height: 25.4mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester
  • No. of Mating Cycles: 30
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • PCB Hole Diameter: 1mm
  • Working Voltage: 500V
