1.01.102.011/0507 Switch, Pushbutton, Mom, Opaque, Green Rafi

RAFIUGS :1.01.102.011/0507 Code de commande:9927220

Prix:
Prix ​​promotionnel€33,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (253 unité)

Documents et téléchargements

description

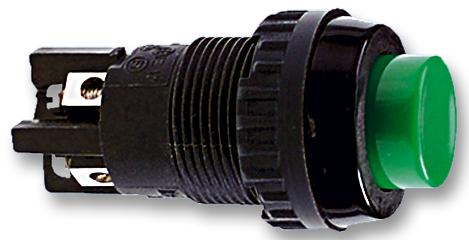

RAFI - 1.01.102.011/0507 - Pushbutton Switch, 18.2 mm, SPST-NO, SPST-NC, On-Off, Round, Green

  • Switch Operation: On-Off
  • Contact Configuration: SPST-NO, SPST-NC
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 2A
  • Switch Terminals: Screw
  • Product Range: -
  • Actuator / Cap Colour: Green
  • Colour: opaque green
  • Contact Current AC Max: 2A
  • Contact Voltage VAC: 250V
  • External Depth: 34mm
  • External Length / Height: 10.5mm
  • IP Rating: IP40
  • Illumination Colour: Non-illuminated
  • No. of Electrical Operations: 50000
  • No. of Mechanical Operations: 50000
  • Operating Force: 9.5N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 18.2mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
