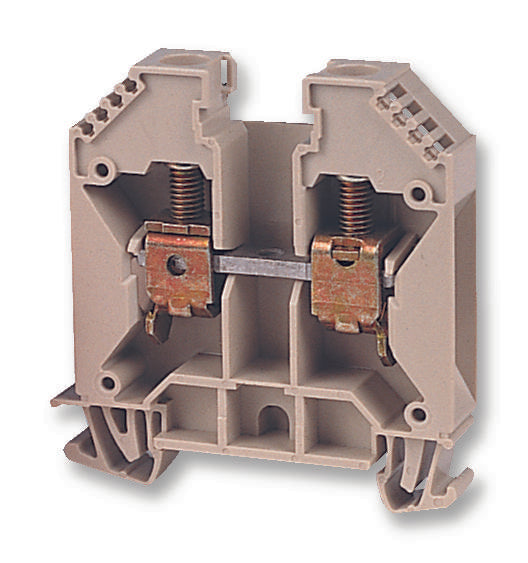

102040 WDU16 Terminal Block, DIN Rail, 2Pos, 4AWG Weidmuller

WEIDMULLERUGS :102040 WDU16 Code de commande:1131784

Prix:
Prix ​​promotionnel€5,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5 unité)

Documents et téléchargements

description

WEIDMULLER - 102040 WDU16 - DIN Rail Mount Terminal Block, 2 Ways, 18 AWG, 4 AWG, 25 mm², Screw, 76 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 18AWG
  • Wire Size AWG Max: 4AWG
  • Conductor Area CSA: 25mm²
  • Wire Connection Method: Screw
  • Rated Current: 76A
  • Rated Voltage: 1kV
  • No. of Levels: 1
  • Product Range: W-Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, DEMKO, LCIE, LLOYDS, SETI , SEV, UL
  • Colour: Beige
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Length / Height: 63mm
  • External Width: 60mm
  • Flexible Wire Area Size Max: 16mm²
  • Pitch Spacing: 12mm
  • Voltage Rating VAC: 750V
  • Wire Area Size Max: 25mm²
  • Wire Area Size Min: 1.5mm²
  • Working Voltage: 750V
