109L0624H402 Fan, Long Life, 60mm, 24Vdc SANYO DENKI

SANYO DENKIUGS :109L0624H402 Code de commande:9948007

Prix:
Prix ​​promotionnel€104,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

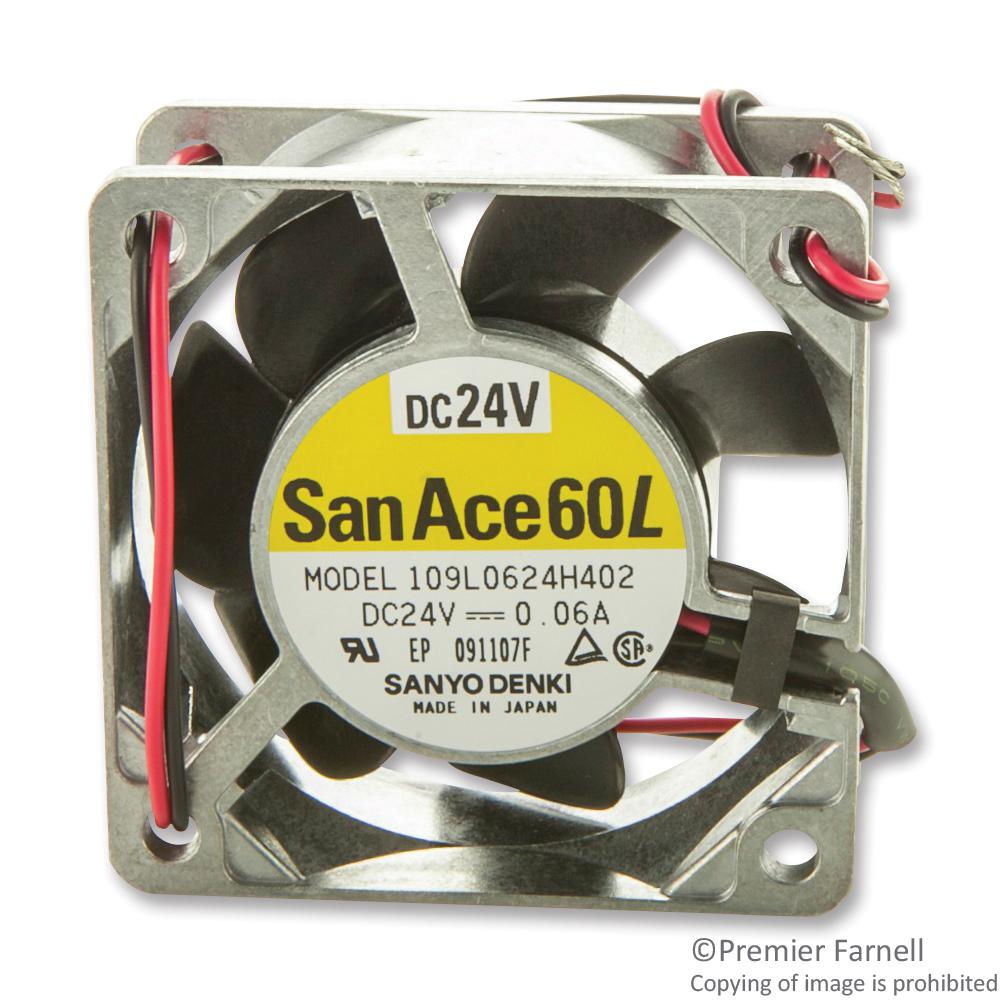

SANYO DENKI - 109L0624H402 - DC Axial Fan, 24 V, Square, 60 mm, 25 mm, Ball Bearing, 18.7 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 60mm
  • External Depth: 25mm
  • Noise Rating: 28dBA
  • Flow Rate - Imperial: 18.7cu.ft/min
  • Flow Rate - Metric: 0.53m³/min
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 60mA
  • Product Range: San Ace 60L Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jun-2015)
  • External Height: 60mm
  • External Width: 60mm
  • Fixing Centres: 50mm
  • Fixing Hole Diameter: 4.5mm
  • Frame Dimensions: 60mm x 60mm x 25mm
  • Panel Cutout Diameter: 63mm
  • Power Consumption: 1.44W
  • Pressure Max: 40Pa
