11 MMCX-50-2-3/111OE RF Coaxial, MMCX, Straight Plug, 50ohm Huber+SUHNER

HUBER+SUHNERUGS :11 MMCX-50-2-3/111OE Code de commande:4163461

Prix:
Prix ​​promotionnel€27,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (27 unité)

Documents et téléchargements

description

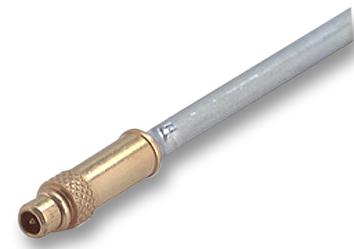

HUBER+SUHNER - 11 MMCX-50-2-3/111OE - RF / Coaxial Connector, MMCX Coaxial, Straight Plug, Crimp, 50 ohm

  • Connector Type: MMCX Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: Enviroflex 316, RG174, RG188A, RG316
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Gold
  • Centre Contact Resistance: 5mohm
  • Coaxial Type: RG174
  • Connector Mounting Orientation: Cable
  • Contact Resistance: 2.5mohm
  • Dielectric Material: PTFE
  • Insulation Resistance: 10000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 6GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Crimp
  • VSWR: 1.03
  • Withstand Voltage: 500V
  • Working Voltage: 170V
