1101M1S3ZQE2 Slide Switch, SPDT, On-On C&K Components

C&K COMPONENTSUGS :1101M1S3ZQE2 Code de commande:1437714

Prix:
Prix ​​promotionnel€10,74

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1038 unité)

Documents et téléchargements

description

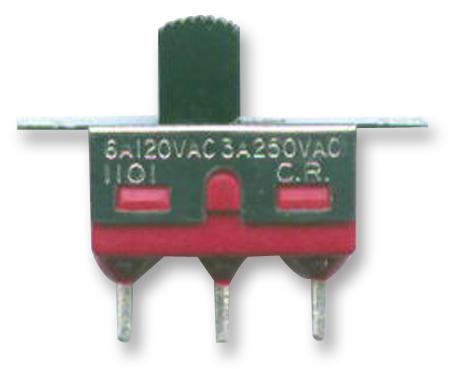

C&K COMPONENTS - 1101M1S3ZQE2 - Slide Switch, SPDT, On-On, Panel Mount, 1000, 6 A, 250 V

  • Contact Configuration: SPDT
  • Switch Operation: On-On
  • Switch Mounting: Panel
  • Product Range: 1000 Series
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • Orientation: Vertical
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Actuator Type: Raised Slide
  • Approval Bodies: CSA, UL
  • Case Material: Diallyl phthalate (DAP)
  • Contact Current @ Contact Voltage AC Max: 6A
  • Contact Current @ Contact Voltage AC Min: 3A
  • Contact Current @ Contact Voltage DC Max: 6A
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Min: 120VAC
  • Dielectric Strength VDC: 1000VAC
  • External Length / Height: 6.35mm
  • External Width: 12.7mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 4.7mm
  • Lever Length: 5.08mm
  • No. of Electrical Operations: 40000
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -30°C
  • Termination Method: Through Hole
  • Travel: 2.16mm
