1119203 Cable, YY, 3 Core, 1mm, 50m Lapp Kabel

LAPP KABELUGS :1119203 Code de commande:1657596

Prix:
Prix ​​promotionnel€55,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (34 unité)

Documents et téléchargements

description

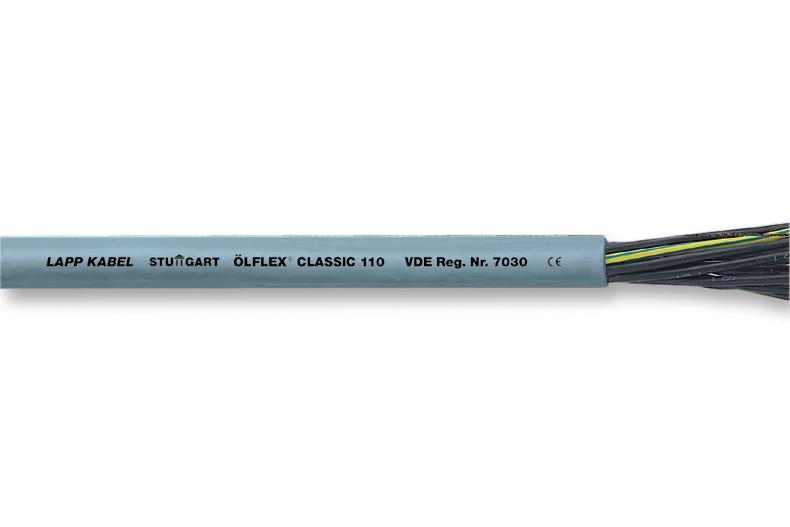

LAPP KABEL - 1119203 - Multicore Cable, Ölflex® YY, Unscreened, 3 Core, 18 AWG, 1 mm², 164 ft, 50 m

  • Cable Shielding: Unscreened
  • No. of Cores: 3Core
  • Wire Gauge: 18AWG
  • Conductor Area CSA: 1mm²
  • Reel Length (Imperial): 164ft
  • Reel Length (Metric): 50m
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: -
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 6mm
  • Voltage Rating: 500V
  • Product Range: Ölflex&reg
  • SVHC: No SVHC (15-Jan-2019)
  • Bend Flexing Radius Min: 15
  • Cable Type: Unshielded
  • Core-Earth / Core-Core Voltage Rating: 300/500 V
  • Flexing Temperature Max: 70°C
  • Flexing Temperature Min: -5°C
  • Installed Bend Radius Min: 4
  • Insulation Resistance: 20Gohm
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 6mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Test Voltage: 4000V
  • Voltage Rating VAC: 500V
