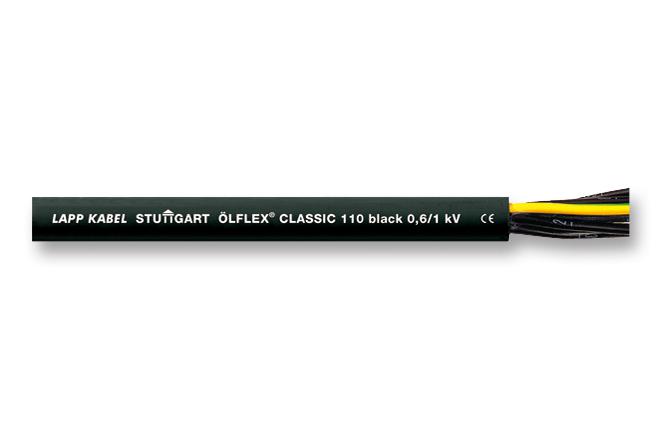

LAPP KABEL - 1120235 - Multicore Cable, UV Resistant, Unscreened, 4 Core, 19 AWG, 0.75 mm², 164 ft, 50 m
- Cable Shielding: Unscreened
- No. of Cores: 4Core
- Wire Gauge: 19AWG
- Conductor Area CSA: 0.75mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 24 x 0.2mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 9.2mm
- Voltage Rating: 1kV
- Product Range: UV Resistant Series
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 15 x diameter
- Cable Type: Unshielded
- Conductor Make-up: 24 / 0.2mm
- Core-Earth / Core-Core Voltage Rating: 600/1000V
- Installed Bend Radius Min: 6 x diameter
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Outer Diameter: 9.2mm
- Secondary Insulation Material: PVC
