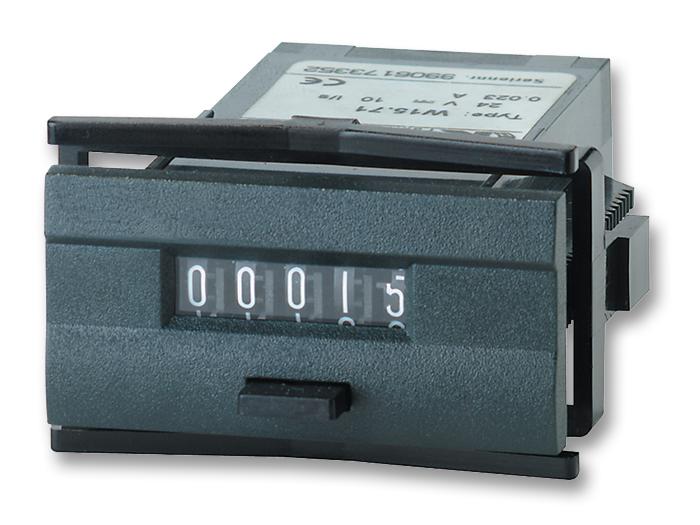

KUEBLER - 1.150.510.013.550 - Display Counter, Electromechanical, Type W 15.51, 5 Digits, 24 Vdc, 10 Impulses
- No. of Digits / Alpha: 5
- Digit Height: 4mm
- Supply Voltage Min: 21.6VDC
- Supply Voltage Max: 26.4VDC
- Panel Cutout Height: 22.2mm
- Panel Cutout Width: 45mm
- Operating Temperature Min: -10°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Counting Speed: 10Hz
- Operating Temperature Range: -10°C to +50°C
- Power Consumption: 130mW
- Supply Voltage Range: 21.6V DC to 26.4V DC
- Supply Voltage V DC: 24VDC
- Weight: 62g
