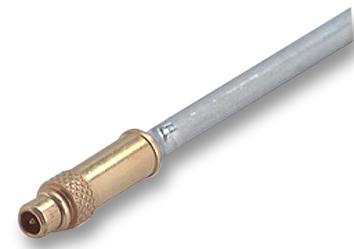

HUBER+SUHNER - 11"MMCX-50-2-1/111"OE - RF / Coaxial Connector, MMCX Coaxial, Straight Plug, Solder, 50 ohm, RG405, Brass
- Connector Type: MMCX Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG405
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- Body Plating: Gold
- Centre Contact Resistance: 15mohm
- Coaxial Type: RG405
- Connector Mounting Orientation: Cable
- Dielectric Material: PTFE
- Insulation Resistance: 1000Mohm
- Material: Brass
- Operating Frequency Max: 6GHz
- Outer Contact Resistance: 7.5mohm
- Termination Method: Solder
- VSWR: 1.10
