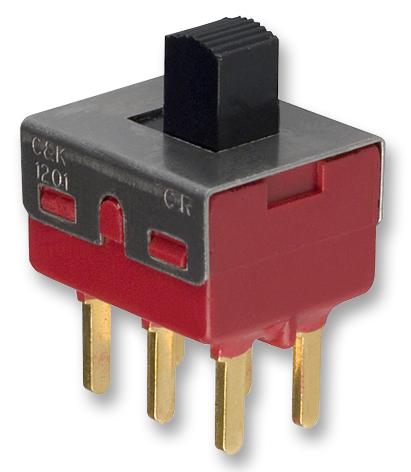

1201M2S3CQE2 Slide Switch, DPDT, On-On C&K Components

C&K COMPONENTSUGS :1201M2S3CQE2 Code de commande:1437699

Prix:
Prix ​​promotionnel€18,33

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (35 unité)

Documents et téléchargements

description

C&K COMPONENTS - 1201M2S3CQE2 - Slide Switch, DPDT, On-On, Through Hole, 1000, 6 A, 250 V

  • Contact Configuration: DPDT
  • Switch Operation: On-On
  • Switch Mounting: Through Hole
  • Product Range: 1000 Series
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • Orientation: Vertical
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Actuator Type: Raised Slide
  • Approval Bodies: CSA, UL
  • Case Material: Diallyl phthalate (DAP)
  • Contact Current @ Contact Voltage AC Max: 6A
  • Contact Current @ Contact Voltage AC Min: 3A
  • Contact Current @ Contact Voltage DC Max: 6A
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Min: 120VAC
  • Dielectric Strength VDC: 1000VAC
  • External Depth: 11.43mm
  • External Length / Height: 7.62mm
  • External Width: 12.7mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 4.7mm
  • Lever Length: 5.08mm
  • No. of Electrical Operations: 40000
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -30°C
  • Travel: 2.16mm
