1301.9306 Switch, Pcb, Push, 9.5mm Schurter

SCHURTERUGS :1301.9306 Code de commande:1217776

Prix:
Prix ​​promotionnel€0,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6820 unité)

Documents et téléchargements

description

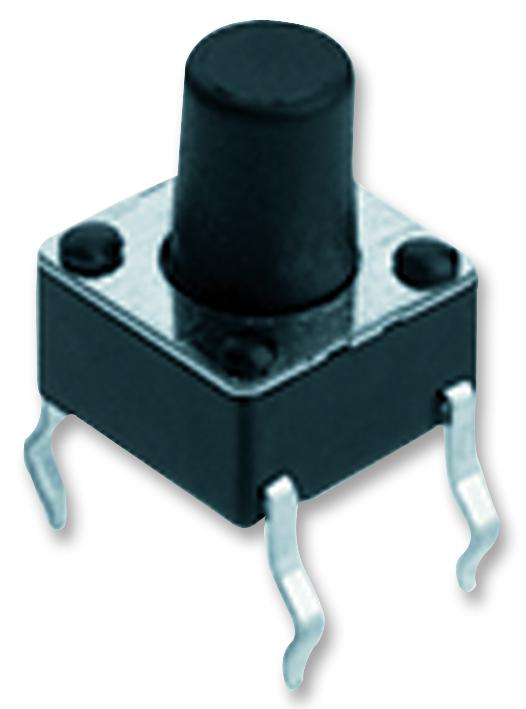

SCHURTER - 1301.9306 - Tactile Switch, LPH, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 12VDC

  • Product Range: LPH Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: IP40
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Voltage DC Max: 12V
  • Contact Voltage DC Nom: 12V
  • External Depth: 6mm
  • External Length / Height: 3.5mm
  • External Width: 6mm
  • Height Max: 9.5mm
  • Lead Spacing: 4.5mm
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.6N
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Switch Terminals: Solder
