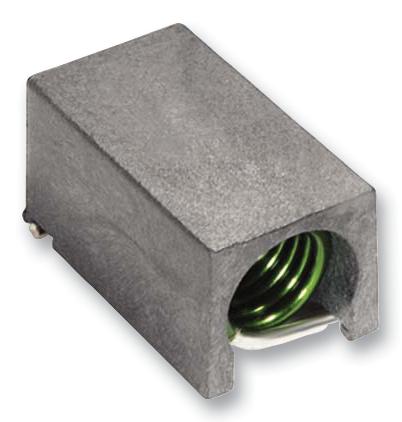

COILCRAFT - 132-19SMGLD - Air Core Inductor, 491 nH, 2 A, Maxi Spring, ± 2%, 0.065 ohm, 535 MHz
- Inductance: 491nH
- RMS Current (Irms): 2A
- Product Range: Maxi Spring Series
- Inductance Tolerance: ± 2%
- Air Core Inductor Case: 10.55mm x 6.1mm x 5.97mm
- DC Resistance Max: 0.065ohm
- Self Resonant Frequency Min: 535MHz
- SVHC: No SVHC (15-Jan-2019)
- Core Material: Air
- DC Current Rating: 2A
