1393236-4 Relay, SPDT, 250VAC, 6a SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :1393236-4 Code de commande:2060766

Prix:
Prix ​​promotionnel€15,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (693 unité)

Documents et téléchargements

description

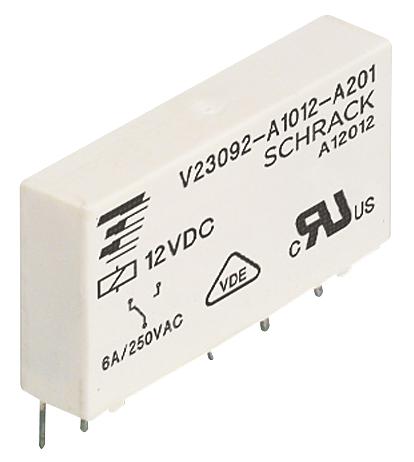

SCHRACK - TE CONNECTIVITY - 1393236-4 - General Purpose Relay, SNR Series, Power, Non Latching, SPDT, 12 VDC, 6 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 6A
  • Product Range: SNR Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 848ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 250V
  • External Depth: 28mm
  • External Height: 15mm
  • External Width: 5mm
  • Nom Operating Power: 170mW
  • Relay Type: Power
