14191 Connector, Header, THT, 2.54mm, 5WAY Bulgin Limited

BULGIN LIMITEDUGS :14191 Code de commande:9667768

Prix:
Prix ​​promotionnel€1,69

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (841 unité)

Documents et téléchargements

description

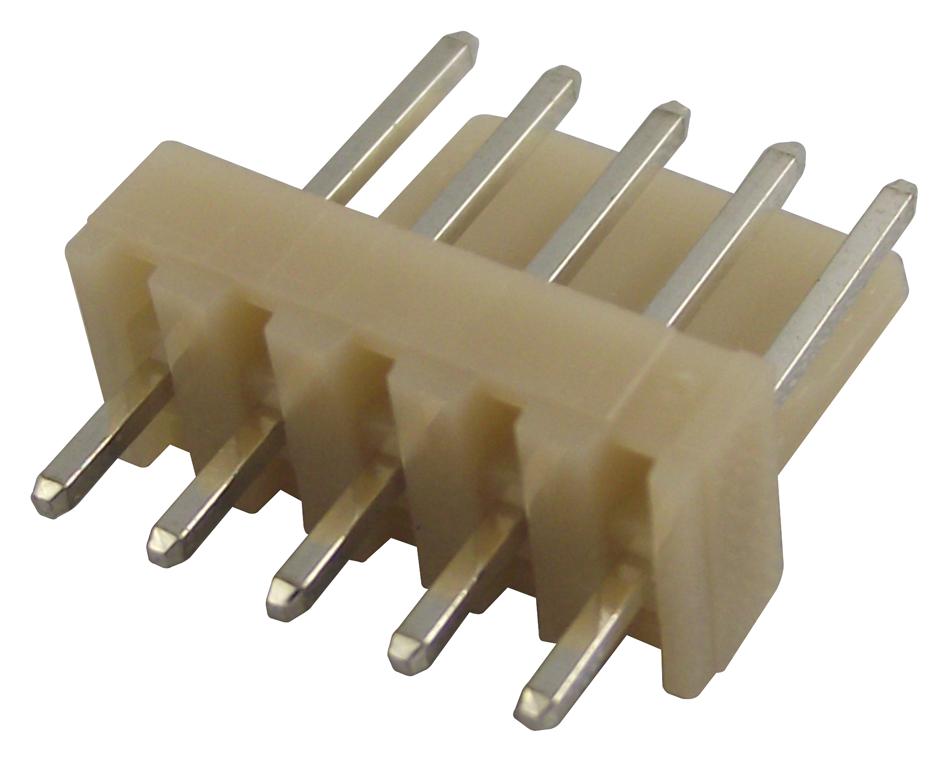

BULGIN LIMITED - 14191 - Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 5 Contacts, Through Hole, Buccaneer

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 5Contacts
  • Gender: Header
  • Product Range: Buccaneer Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (27-Jun-2018)
  • Contact Resistance Max: 10mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP68, IP69K
  • Insulator Material: PC (Polycarbonate)
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: 0°C
  • Voltage Rating VAC: 30V
  • Working Voltage: 30V
