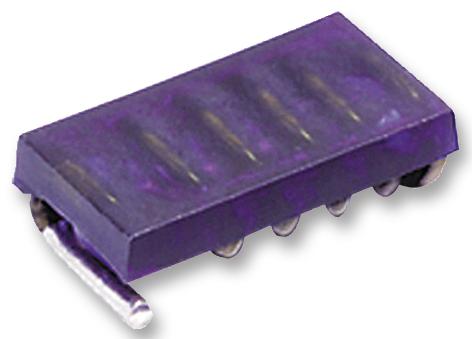

COILCRAFT - 1508-9N0JLC - Air Core Inductor, Low Profile, 9 nH, 4 A, Mini Spring, ± 5%, 0.0034 ohm, 4 GHz
- Inductance: 9nH
- RMS Current (Irms): 4A
- Product Range: Mini Spring Series
- Inductance Tolerance: ± 5%
- Air Core Inductor Case: 3.94mm x 3.43mm x 2.01mm
- DC Resistance Max: 0.0034ohm
- Self Resonant Frequency Min: 4GHz
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- DC Current Rating: 4A
