1.5KE56CA-e3/54 Diode, TVs, 1.5kW, 56V, BIDIR, KE Vishay

VISHAYUGS :1.5KE56CA-E3/54 Code de commande:1698854

Prix:
Prix ​​promotionnel€1,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1113 unité)

Documents et téléchargements

description

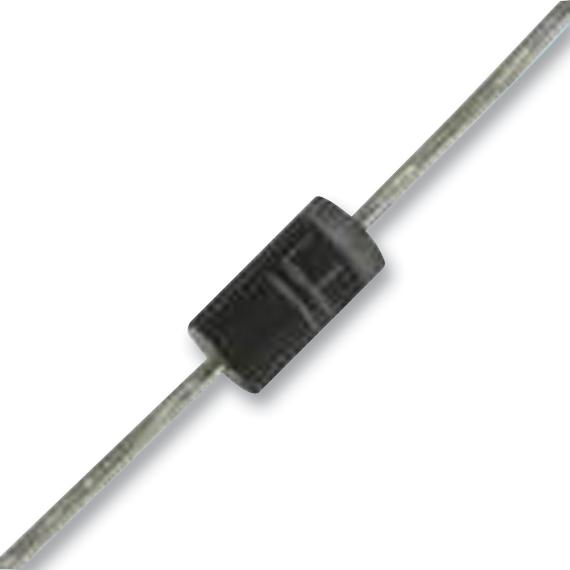

VISHAY - 1.5KE56CA-E3/54 - TVS Diode, Transil 1.5KE, Bidirectional, 47.8 V, 77 V, Axial Leaded, 2 Pins

  • Product Range: Transil 1.5KE Series
  • TVS Polarity: Bidirectional
  • Reverse Stand-Off Voltage Vrwm: 47.8V
  • Clamping Voltage Vc Max: 77V
  • Diode Case Style: Axial Leaded
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 53.2V
  • Breakdown Voltage Max: 58.8V
  • Peak Pulse Power Dissipation: 1.5kW
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (27-Jun-2018)
  • Breakdown Voltage: 56V
  • Breakdown Voltage Range: 53.2V to 58.8V
  • Breakover Voltage Min: 53.2V
  • Diode Type: Bidirectional TVS
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Peak Pulse Current IPP @ 8/20µs: 19.5A
  • Peak Pulse Current Ippm: 18.6A
  • Power Dissipation Pd: 6.5W
  • Stand-off Voltage: 47.8V
  • Termination Type: Axial Leaded
  • Test Current: 1mA
  • Time Measured: 50ms
