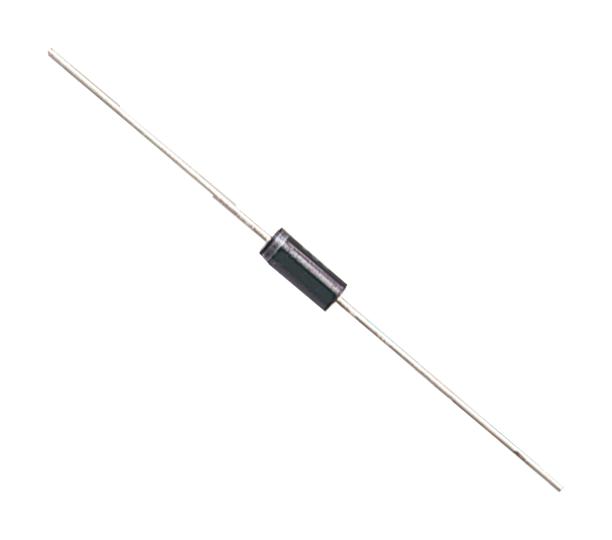

STMICROELECTRONICS - 1.5KE62A - TVS Diode, Transil 1.5KE, Unidirectional, 53 V, 85 V, DO-201, 2 Pins
- Product Range: Transil 1.5KE Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 53V
- Clamping Voltage Vc Max: 85V
- Diode Case Style: DO-201
- No. of Pins: 2Pins
- Breakdown Voltage Min: 58.9V
- Breakdown Voltage Max: 65.1V
- Peak Pulse Power Dissipation: 1.5kW
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Body Diameter: 5.3mm
- Breakdown Voltage: 62V
- Breakdown Voltage Range: 58.9V to 65.1V
- Breakover Voltage Min: 58.9V
- Capacitance Cd @ Vr Typ: 1700pF
- Clamping Voltage @ 8/20µs Max: 111V
- Current Ir Max: 1µA
- Current Ir Vbr Measurement Min: 1mA
- Current Itsm: 200A
- Diode Type: Unidirectional TVS
- External Length / Height: 9.5mm
- Forward Surge Current Ifsm Max: 200A
- Full Power Rating Temperature: 75°C
- JEDEC Number: 1N6284CA
- Lead Diameter: 1.06mm
- Peak Pulse Current IPP @ 10/1000µs: 17.7A
- Peak Pulse Current Ippm: 162A
- Power Dissipation Pd: 5W
- Power Dissipation Ptot Max: 5W
- Repetitive Reverse Voltage Vrrm Max: 53V
- Reverse Leakage Current Max: 1µA
