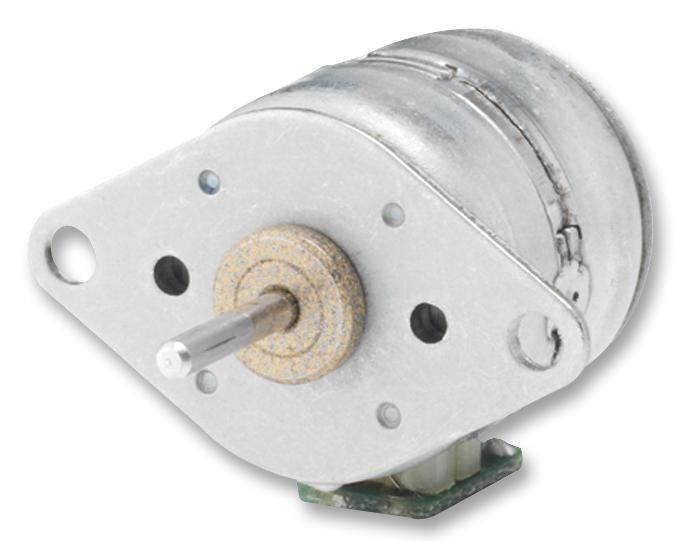

15M020D1B Stepper Motor, Tin Can MCLENNAN

MCLENNANUGS :15M020D1B Code de commande:1784800

Prix:
Prix ​​promotionnel€39,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6 unité)

Documents et téléchargements

description

MCLENNAN - 15M020D1B - Stepper Motor, Single Shaft, 15 mm, Bipolar, Unipolar, 18 °, 0.388 N-cm, 125 mA

  • Coil Type: -
  • Torque Max: 0.388N-cm
  • Current Rating: 125mA
  • No. of Phases: Four Phase
  • Resistance: 40ohm
  • Inductance: 14mH
  • Inertia: 0.11g-cm²
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Current per Phase: 125mA
  • External Depth: 15.11mm
  • External Diameter: 15.01mm
  • Fixing Centres: 20mm
  • Fixing Hole Diameter: 2.2mm
  • Flange Width: 24mm
  • Holding Torque: 0.388N-cm
  • Indexing Angle: 18°
  • Phase Resistance: 40ohm
  • Shaft Diameter: 1.5mm
  • Shaft Length: 10mm
  • Termination Type: Wire Leaded
