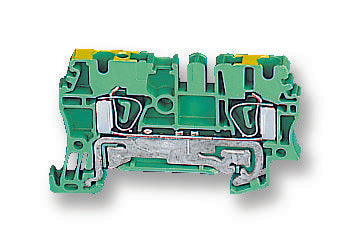

WEIDMULLER - 160864 ZPE2.5 - DIN Rail Mount Terminal Block, 2 Ways, 30 AWG, 12 AWG, 4 mm², Tension Clamp, 8 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 30AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 4mm²
- Wire Connection Method: Tension Clamp
- Rated Current: 8A
- Rated Voltage: 800V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, DEMKO, EZU, KEMA, LCIE, LLOYDS, LUL, NEMKO, SEMKO, SETI, SEV, UL
- Colour: Green
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Length / Height: 63mm
- External Width: 39mm
- Height: 63mm
- Pitch Spacing: 5mm
- Voltage Rating VAC: 800V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 0.5mm²
