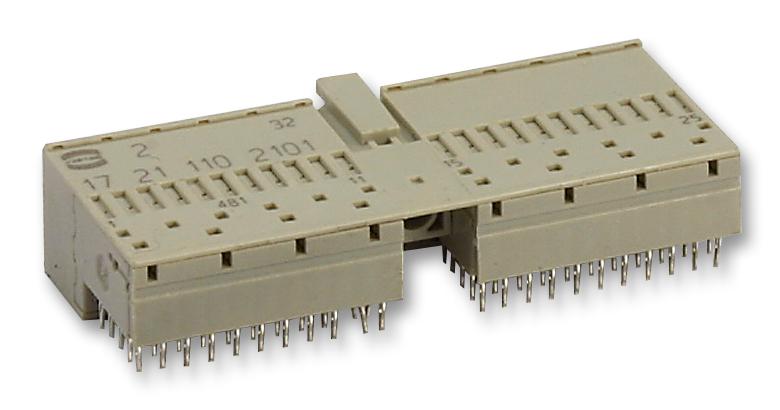

HARTING - 1726 220 2102 - Heavy Duty Connector, Right Angle, Har-Bus Series, PCB Mount, Receptacle, 220 Contacts, 5 Rows
- Product Range: Har-Bus Series
- Connector Mounting: PCB Mount
- Gender: Receptacle
- No. of Contacts: 220Contacts
- Contact Gender: -
- No. of Rows: 5Rows
- Contact Termination Type: Press Fit
- Connector Shell Size: -
- Contact Material: Copper
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: IEC
- Body Plating: Gold
- Connector Type: Rectangular Power
- Contact Resistance: 20mohm
- Contact Termination: Press Fit Right Angle
- Current Rating: 1.5A
- De-mating Force: 100N
- Flammability Rating: UL94V-0
- Material: Thermoplastic Resin
- Mating Force: 20N
- No. of Mating Cycles: 250
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Pitch Spacing: 2mm
