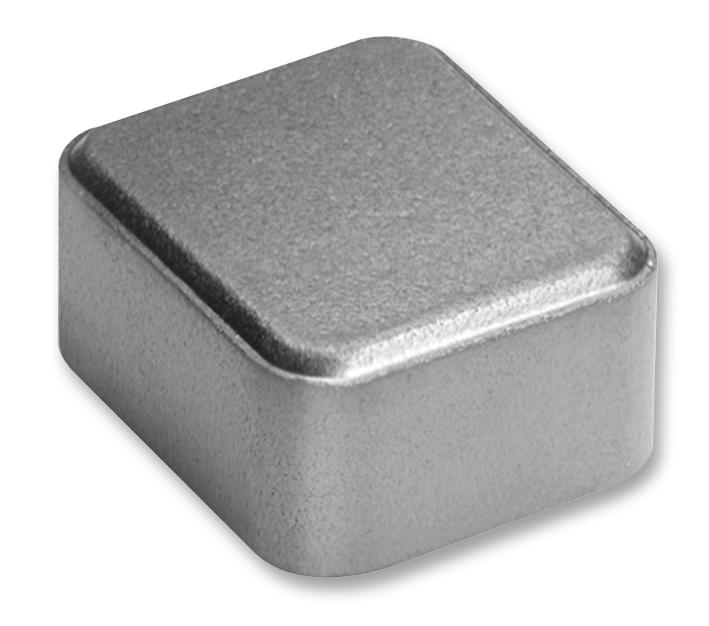

COILCRAFT - 1812PS-105JLC - Power Inductor (SMD), 1 mH, 220 mA, Shielded, 80 mA, 1812PS, 1812 [4525 Metric]
- Inductance: 1mH
- RMS Current (Irms): 220mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 80mA
- Product Range: 1812PS Series
- Power Inductor Case: 1812 [4525 Metric]
- DC Resistance Max: 10ohm
- Inductance Tolerance: ± 5%
- SVHC: No SVHC (15-Jan-2019)
- Q Factor: 28
- Q Test Frequency: 1MHz
- Self Resonant Frequency Min: 2MHz
