description

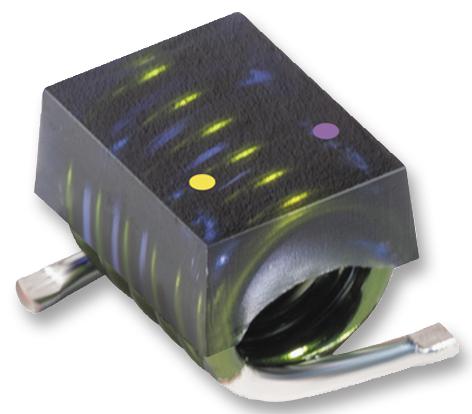

COILCRAFT - 1812SMS-47NJLC - Air Core Inductor, 47 nH, 3 A, Midi Spring, ± 5%, 0.0056 ohm, 2.1 GHz
- Inductance: 47nH
- RMS Current (Irms): 3A
- Product Range: Midi Spring Series
- Inductance Tolerance: ± 5%
- Air Core Inductor Case: 4.95mm x 3.56mm x 4.2mm
- DC Resistance Max: 0.0056ohm
- Self Resonant Frequency Min: 2.1GHz
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Core Material: Air
- DC Current Rating: 3A
- Reel Quantity: 500
