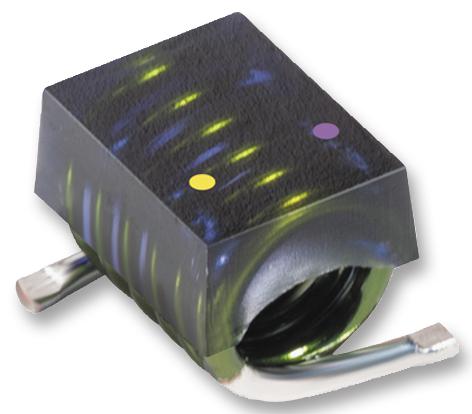

COILCRAFT - 1812SMS-R10JLC - Air Core Inductor, 100 nH, 1.7 A, Midi Spring, ± 5%, 0.0123 ohm, 1.2 GHz
- Inductance: 100nH
- RMS Current (Irms): 1.7A
- Product Range: Midi Spring Series
- Inductance Tolerance: ± 5%
- Air Core Inductor Case: 4.95mm x 3.56mm x 4.2mm
- DC Resistance Max: 0.0123ohm
- Self Resonant Frequency Min: 1.2GHz
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Core Material: Air
- DC Current Rating: 1.7A
- Reel Quantity: 500
