183025-1. Crimp Socket, 18-15AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :183025-1. Code de commande:151075

Prix:
Prix ​​promotionnel€0,89

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (126230 unité)

Documents et téléchargements

description

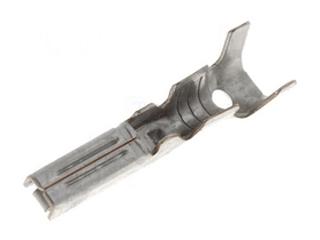

AMP - TE CONNECTIVITY - 183025-1. - Contact, SUPERSEAL 1.5, Socket, Crimp, 15 AWG, Tin Plated Contacts, Superseal 1.5 Series Connectors

  • Product Range: SUPERSEAL 1.5 Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 15AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: Superseal 1.5 Series Connectors
  • Wire Size AWG Min: 18AWG
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 3.3mm
  • Cable Diameter Min: 1.8mm
  • Contact Termination: Crimp
  • Gender: Receptacle
  • No. of Contacts: 1Contacts
  • Wire Area Size Max: 1.5mm²
  • Wire Area Size Min: 0.75mm²
  • Wire Size (AWG): 18AWG to 15AWG
