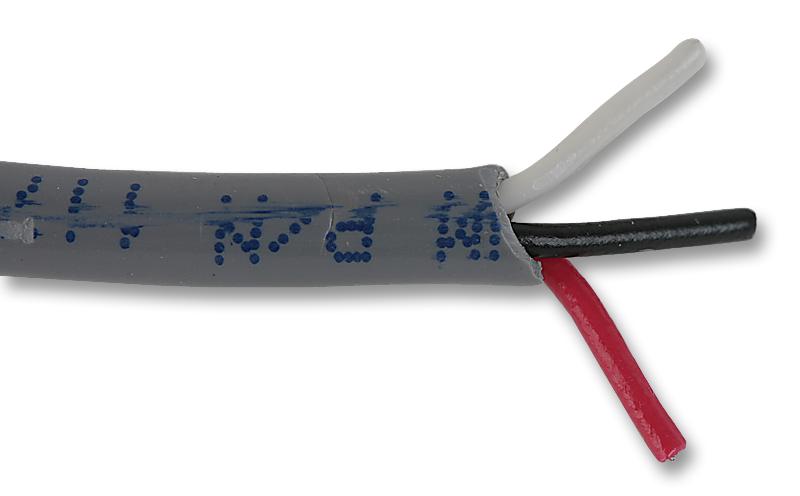

ALPHA WIRE - 1898C SL005 - Multicore Cable, Control, Unscreened, 3 Core, 18 AWG, 0.81 mm², 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 3Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.81mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 16 x 30AWG
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 5.3mm
- Voltage Rating: 300V
- Product Range: UL2509 Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Unshielded
- Conductor Make-up: 16 / 0.25mm
- Operating Temperature Max: 75°C
- Outer Diameter: 5.3mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 0.5mm
- Voltage Rating VAC: 300V
- Wire Size: 18AWG
