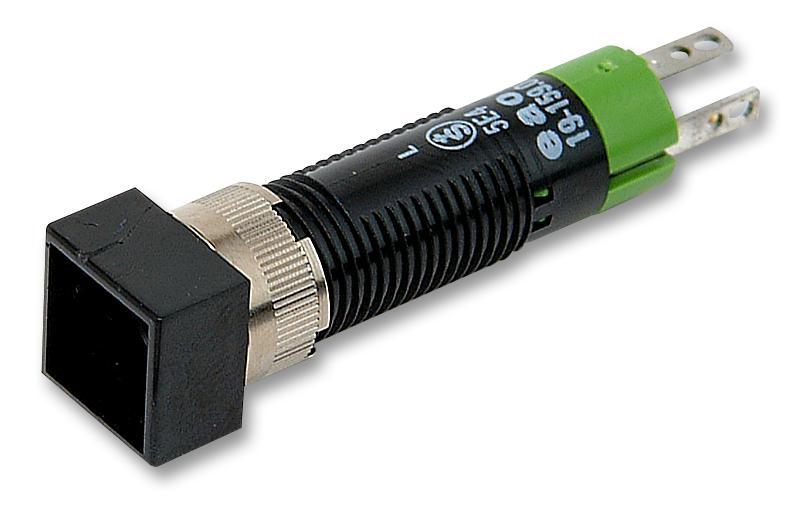

EAO - 19-481.035 - Industrial Pushbutton Switch, 19, 8 mm, SPST-NO, Off-On, Square
- Switch Operation: Off-On
- Pushbutton Actuator Style: Square
- Contact Configuration: SPST-NO
- Product Range: 19 Series
- Switch Terminals: Quick Connect, Solder
- IP Rating: IP40
- Contact Current Max: 100mA
- Contact Voltage AC Nom: 50V
- Contact Voltage DC Nom: 72V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Square
- Contact Current AC Max: 100mA
- Contact Current Rating: 100mA
- Contact Resistance: 15mohm
- Contact Voltage VAC: 50V
- External Depth: 33mm
- External Length / Height: 9mm
- External Width: 9mm
- Insulation Voltage: 1000V
- Operating Temperature Max: 45°C
- Operating Temperature Min: -25°C
- Operating Time: 1.5ms
- Panel Cutout Diameter: 8mm
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
