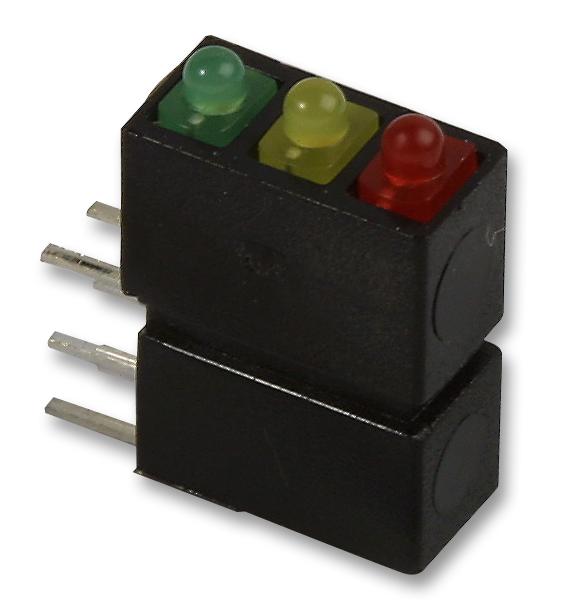

MENTOR - 1905.8720 - Circuit Board Indicator, Red, Yellow, Green, 3 LEDs, Through Hole, 2mm, R 20mA, Y 20mA, G 20mA
- LED Colour: Red, Yellow, Green
- No. of LEDs: 3LEDs
- LED Mounting: Through Hole
- Bulb Size: 2mm
- Forward Current / Colour: R 20mA, Y 20mA, G 20mA
- Luminous Intensity / Colour: R 1.6mcd, Y 8mcd, G 10mcd
- Forward Voltage / Colour: R 2.25V, Y 2.1V, G 2.2V
- Viewing Angle: 70°
- Height: 10.1mm
- Width: 5.05mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Display Size: 5.05mm x 10.1mm
- External Depth: 10.16mm
- Forward Current If: 30mA
- Forward Current If Max: 30mA
- Forward Voltage @ If Green LED: 2.2V
- Forward Voltage @ If Red LED: 2V
- Forward Voltage @ If Yellow LED: 2.1V
- Forward Voltage VF Max: 2.5V
- Green Luminous Intensity: 12.5mcd
- LED / Lamp Size: 2mm
- LED Configuration: Array
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 12.5mcd
- Luminous Intensity Red: 3.2mcd
- Luminous Intensity Typ: 12.5mcd
- No. of Pins: 6Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Yellow Luminous Intensity: 12.5mcd
