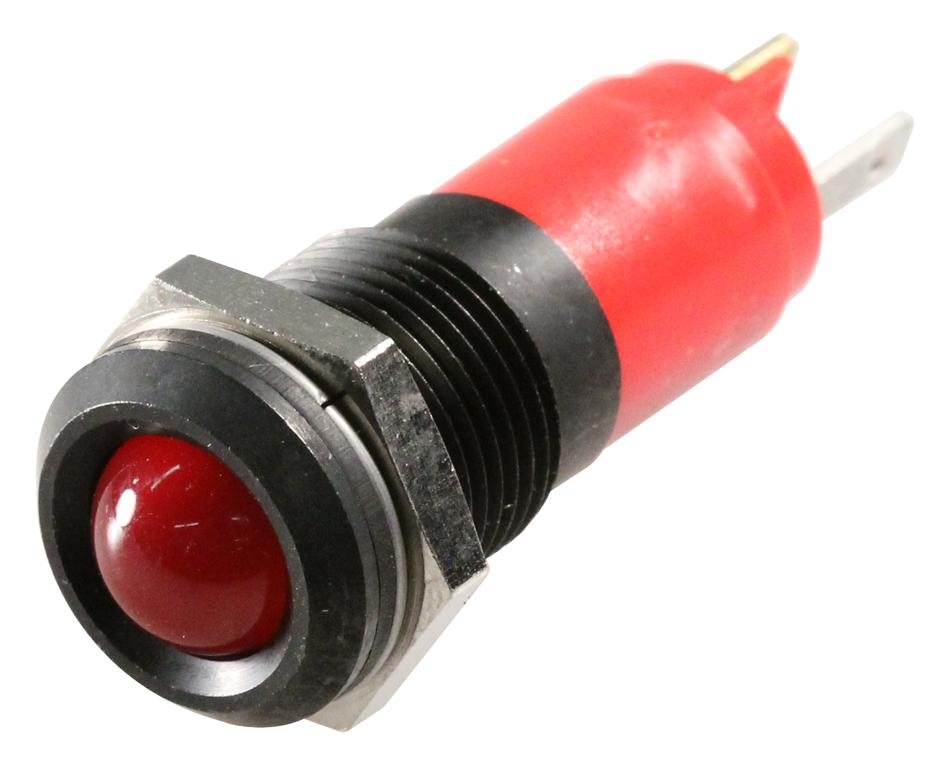

CML INNOVATIVE TECHNOLOGIES - 19221353 - LED Panel Mount Indicator, Flashing, Red, 24 VDC, 14 mm, 56 mA, 130 mcd, IP67
- LED Colour: Red
- Operating Voltage: 24VDC
- Mounting Hole Dia: 14mm
- Forward Current If: 56mA
- Luminous Intensity: 130mcd
- IP / NEMA Rating: IP67
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- Bezel Diameter: 16mm
- Bulb Size: 10mm
- Current If Luminous Intensity: 20mA
- External Diameter: 16mm
- Fixing Hole Diameter: 14.5mm
- Forward Current If Max: 56mA
- Forward Voltage: 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 10mm
- Length Behind Bezel: 42mm
- Luminous Intensity Typ: 70mcd
- Material: Brass, Black Chrome plated
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +70°C
- Operating Voltage Tolerance +: 10%
- Operating Voltage Tolerance -: 10%
- Peak Forward Current: 22mA
- Peak Wavelength: 660nm
- Reverse Protection Voltage: 5V
- Supply Voltage V DC: 24V
- Thread Pitch: 1mm
- Thread Size: M14
- Voltage Rating V DC: 24V
- Voltage Vf Typ: 24V
- Wavelength Typ: 660nm
