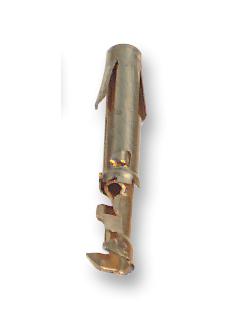

ITT CANNON - 192990-0030 - Circular Connector Contact, Trident, Socket, Crimp, 24 AWG, 26 AWG
- Product Range: Trident Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 24AWG
- Wire Size AWG Min: 26AWG
- For Use With: Trident T2P Series Circular Connectors
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- Cable Diameter Max: 1.58mm
- Cable Diameter Min: 0.89mm
- Contact Termination: Crimp
- Current Rating: 13A
- No. of Mating Cycles: 200
- Wire Area Size Max: 0.25mm²
- Wire Area Size Min: 0.14mm²
- Wire Size: 24AWG
