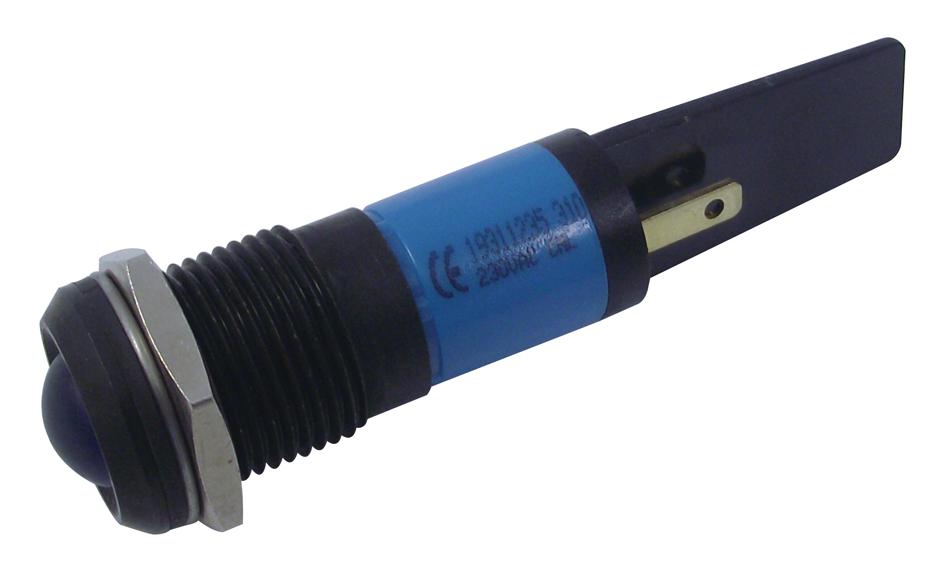

CML INNOVATIVE TECHNOLOGIES - 19311235 - Neon Indicator, Isolating Spacer, 230 V, Wire Leaded, Blue, Dome, 1.5 mA
- Supply Voltage: 230V
- Lamp Base Type: Wire Leaded
- Illumination Colour: Blue
- Mounting Hole Dia: -
- Lens Shape: Dome
- Current Rating: 1.5mA
- Product Range: 1931 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- Average Bulb Life: 25000h
- Base Type: Wire Lead
- Bezel Diameter: 16mm
- Bulb Size: 10mm
- Colour: Blue
- Forward Current If Max: 1.5mA
- LED / Lamp Size: 10mm
- LED Colour: Blue
- Length Behind Bezel: 67mm
- Luminous Intensity: 7.5mcd
- Luminous Intensity Typ: 7.5mcd
- Material: Brass
- Operating Current AC: 3mA
- Operating Temperature Max: 60°C
- Operating Temperature Min: -25°C
- Operating life Time: 25000h
- Panel Cutout Diameter: 14.5mm
- Supply Voltage AC Max: 250V
- Supply Voltage V AC: 230V
- Thread Pitch: 1mm
- Thread Size: M14
- Voltage Vf Typ: 230V
