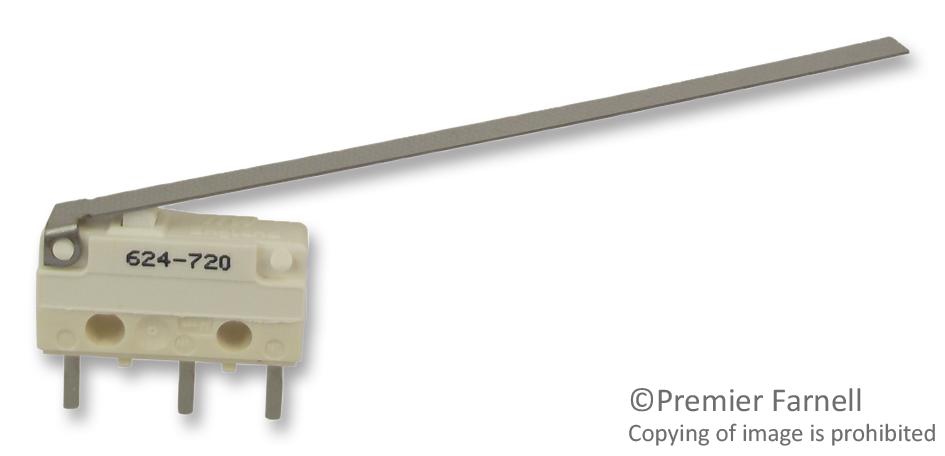

ITW SWITCHES - 19N503L63 - Microswitch, Snap Action, Long Lever, SPDT, Solder, 5 A, 28 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Long Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 5A
- Contact Voltage DC Nom: 28VDC
- Product Range: 19N Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.5N
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Long Lever
- Actuator Type: Long Lever
- Approval Bodies: BEAB, VDE
- Contact Current AC: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 3A
- Contact Current Rating: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 28V
- Differential Travel Max: 6.35mm
- External Depth: 6.35mm
- External Length / Height: 11.1mm
- External Width: 19.9mm
- Fixing Centres: 9.53mm
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- Lever Length: 63mm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 10000000
- Operating Force: 0.15N
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Pre-travel: 21mm
- Release Force: 0.02N
- Switch Case: Nylon 4.6 (Polyamide 4.6)
