1MS3T1B1M1RE Switch, SPDT multicomp Pro

MULTICOMP PROUGS :1MS3T1B1M1RE Code de commande:9473440

Prix:
Prix ​​promotionnel€3,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (53 unité)

Documenten en downloads

description

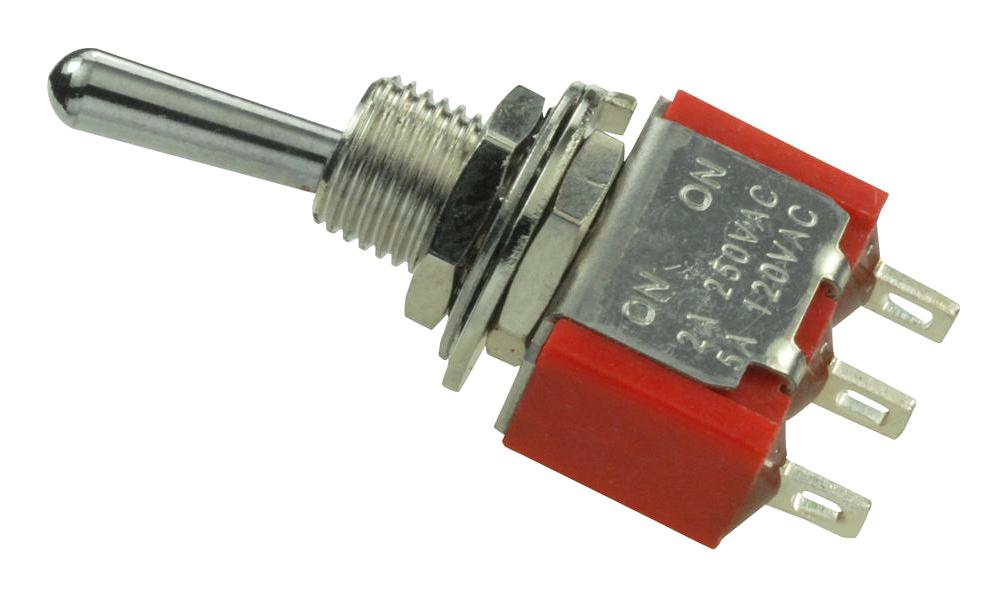

MULTICOMP PRO - 1MS3T1B1M1RE - Toggle Switch, On-Off-On, SPDT, Non Illuminated, 1M, Panel Mount, 5 A

  • Switch Operation: On-Off-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 1M Series
  • Contact Current Max: 5A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Bush Thread Length: 8.88mm
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 10.54mm
  • External Length / Height: 12.7mm
  • External Width: 6.86mm
  • Flammability Rating: UL94V-0
  • Height: 12.7mm
  • Lever Length: 10.4mm
  • No. of Electrical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 6.35mm
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 0.76mm
  • Thread Size: 1/4" x 40 NS
