2-5499206-8 Header, Straight, 34WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :2-5499206-8 Code de commande:1298805

Prix:
Prix ​​promotionnel€19,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (59 unité)

Documents et téléchargements

description

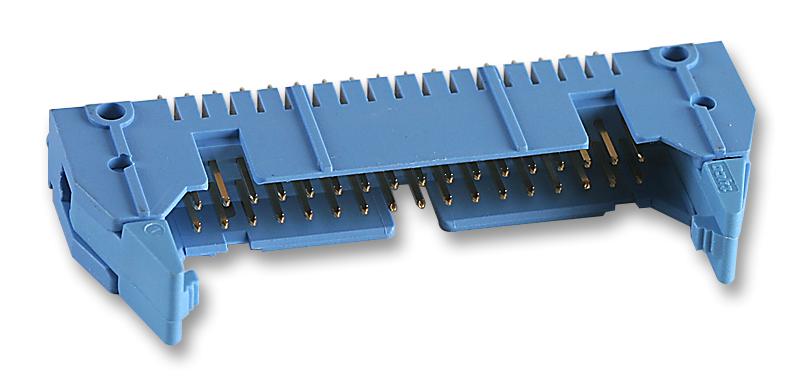

AMP - TE CONNECTIVITY - 2-5499206-8 - Pin Header, Straight, Wire-to-Board, 2.54 mm, 2 Rows, 34 Contacts, Through Hole Straight, AMP-LATCH

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 34Contacts
  • Gender: Header
  • Product Range: AMP-LATCH Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, UL
  • Colour: Blue
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1Gohm
  • Material: Glass Reinforced Thermoplastic
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Polarisation Type: Bump/Clip
  • Terminal Plating: Tin/lead over nickel
  • Withstand Voltage: 500V
