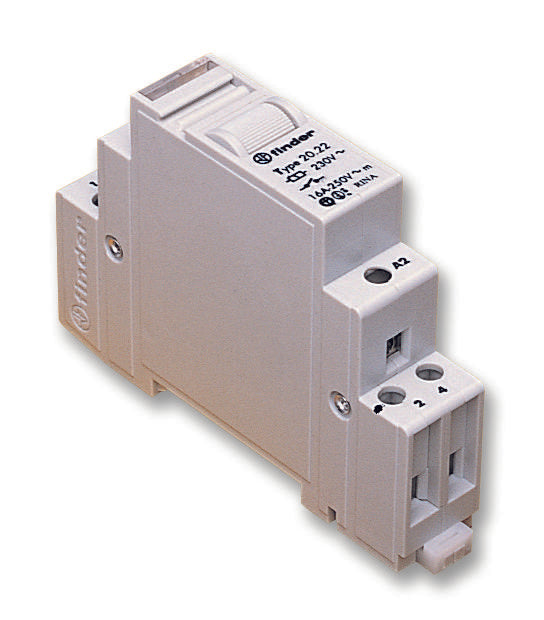

20.23.8.230.0000 Relay, 1NO, 1NC, 250VAC, 16A Finder

FINDERUGS :20.23.8.230.0000 Code de commande:1169291

Prix:
Prix ​​promotionnel€42,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (156 unité)

Documents et téléchargements

description

FINDER - 20.23.8.230.0000 - General Purpose Relay, 20 Series, Power, SPST-NO, SPST-NC, 230 VAC, 16 A

  • Contact Configuration: SPST-NO, SPST-NC
  • Coil Voltage: 230VAC
  • Contact Current: 16A
  • Product Range: 20 Series
  • Relay Mounting: DIN Rail
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 2.5kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: IMQ, SEMKO
  • Coil Current: 28mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VAC Nom: 230V
  • Contact Current AC Max: 16A
  • Contact Current Max: 30A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Current Rating: 16A
  • Dielectric Strength VDC: 3.5kV
  • External Depth: 84mm
  • External Height: 58.4mm
  • External Length / Height: 58.4mm
  • External Width: 17.4mm
  • Nom Operating Power: 6.5VA
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
  • Switched Current Max: 16A
  • Switched Voltage Max: 400V
  • Voltage Rating VAC: 250V
