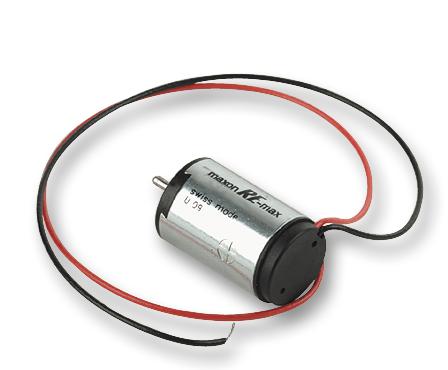

MAXON MOTOR - 203892 - DC Motor, RE-Max 22, Precious Metal Brushes, CLL, Brushed, 15 V, 5750 rpm, 1.28 mN-m, 1.2 W, 13 mm
- Supply Voltage V DC: 15V
- No. of Phases: -
- Power Rating: 1.2W
- Rotational Speed Max: 5750rpm
- Torque Max: 1.28mN-m
- Product Range: -
- Body Diameter: 13mm
- External Diameter: 13mm
- External Height: 20.5mm
- No Load Speed: 13422rpm
- Output Power: 1.2W
- Overall Length: 20.5mm
- Shaft Diameter: 1.5mm
- Shaft Length: 6mm
- Stall Torque: 3.1mN-m
