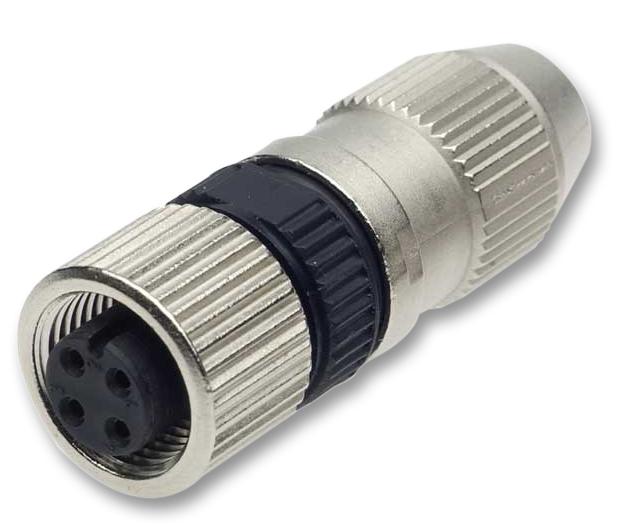

HARTING - 21 03 212 2305 - Sensor Connector, HARAX Series, M12, Female, 4 Positions, IDC / IDT Socket, Straight Cable Mount
- Product Range: HARAX Series
- Sensor Connector Size: M12
- Gender: Receptacle
- No. of Contacts: 4Contacts
- Sensor Contact Type: IDC / IDT Socket
- Sensor Connector Mounting: Straight Cable Mount
- IP / NEMA Rating: IP67
- Connector Coding: L Coded
- Connector Body Material: Nylon (Polyamide) Body
- Contact Material: Brass
- Contact Plating: Gold
- Current Rating: 6A
- Voltage Rating: 50V
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Cable Diameter Max: 8mm
- Cable Diameter Min: 5.5mm
- Connector Insert Type: M12-4
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Termination: Crimp
- For Use With: 4 Position M12 Sensors & Actuators
- Operating Temperature Max: +50°C
- Operating Temperature Min: -5°C
- Range: M12-L
- Wire Area Size Max: 0.75mm²
- Wire Area Size Min: 0.34mm²
- Wire Size AWG Max: 18AWG
- Wire Size AWG Min: 22AWG
- Working Voltage: 50V
