2170204T. Cable, Profibus, P Series, Per M Lapp Kabel

LAPP KABELUGS :2170204T. Code de commande:3034318

Prix:
Prix ​​promotionnel€7,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (198 unité)

Documents et téléchargements

description

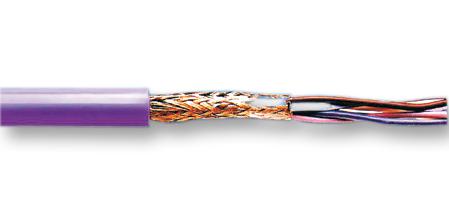

LAPP KABEL - 2170204T. - Multipair Cable, Unitronic® Bus LD, Profibus, Per M, Screened, 2 Pair, 24 AWG, 0.22 mm²

  • Cable Shielding: Screened
  • No. of Pairs: 2 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.22mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Violet
  • No. of Max Strands x Strand Size: -
  • Voltage Rating: 250V
  • Jacket Material: PVC
  • Conductor Material: Copper
  • External Diameter: 7.1mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Type: Braided Shield
  • Conductor Make-up: 2 / 2 / 0.22mm²
  • Core - Core Capacitance: 60nF/km
  • No. of Cores: 4Core
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 7.1mm
  • Weight: 45g
