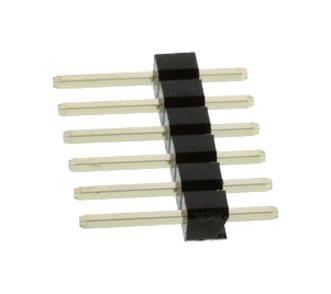

2211S-06G Header, THT, Vertical, 2.54mm, 6Way multicomp Pro

MULTICOMP PROUGS :2211S-06G Code de commande:1593415

Prix:
Prix ​​promotionnel€0,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (30938 unité)

Documents et téléchargements

description

MULTICOMP PRO - 2211S-06G - Pin Header, Board-to-Board, 2.54 mm, 1 Rows, 6 Contacts, Through Hole Straight, 2211S

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 6Contacts
  • Gender: Header
  • Product Range: 2211S Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 600V
