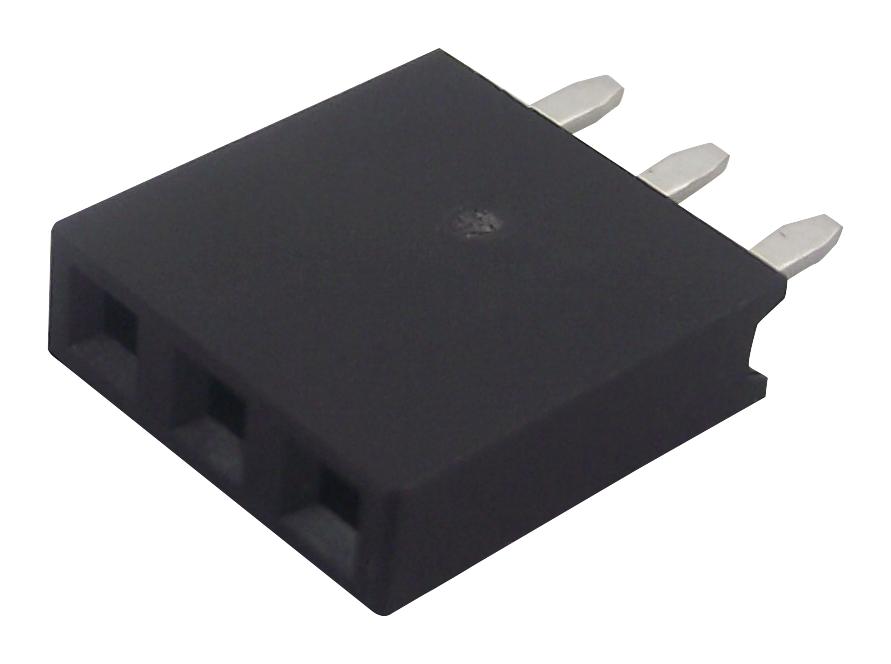

2212S-03SG-85 Socket, Pcb, 1 Row, 3WAY multicomp Pro

MULTICOMP PRO - 2212S-03SG-85 - PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Mount, 2212S

• Pitch Spacing: 2.54mm
• No. of Contacts: 3Contacts
• Gender: Receptacle
• Product Range: 2212S Series
• Contact Termination Type: Through Hole
• No. of Rows: 1Rows
• Contact Plating: Gold Plated Contacts
• Contact Material: Copper Alloy
• SVHC: No SVHC (15-Jan-2019)
• Contact Resistance: 20mohm
• Contact Termination: Solder
• Current Rating: 3A
• Flammability Rating: UL94V-0
• Insulation Resistance: 1000Mohm
• Lead Spacing: 2.54mm
• Operating Temperature Max: 105°C
• Operating Temperature Min: -40°C
• Termination Method: Solder
• Voltage Rating VAC: 250V
• Withstand Voltage: 600V
