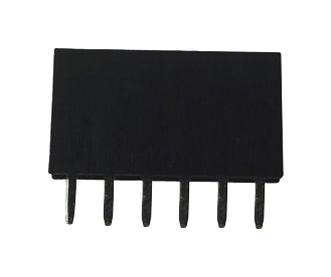

2212S-06SG-85 Socket, Pcb, 1 Row, 6Way multicomp Pro

MULTICOMP PROUGS :2212S-06SG-85 Code de commande:1593462

Prix:
Prix ​​promotionnel€0,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (75194 unité)

Documents et téléchargements

description

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 6Contacts
  • Gender: Receptacle
  • Product Range: 2212S Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 600V
